MTC Tools

TLDR: I was the first designer to work on the native version of our web app. This consisted of designing a mobile search, menu, profile experience, and dashboard.

Background

The Missionary Training Center (MTC) is a profressional training & coaching company based out of Provo Utah. I was on the technology team working on an internal app that serviced that different departments that worked there (Training, Travel, HR, etc.)

Problem

The MTC was investing more resources into building a mobile platform for their internal app (MTC Tools). Previously, they had accomplished this with a Google Site, but were now building out a solution with Angular. They were debuting this new mobile site by rolling out a new profile experience for desktop and mobile.

Brief

I was assigned to design a mobile & desktop profile experience in conjunction with designing foundational UI components such as search, navigation, and a dashboard. The list of items to design were the following...

• Desktop Profile
• Mobile Profile (3 versions for different employee types)
• Mobile Search
• Mobile NavBar
• Dashboard

Team

Myself — UX Designer
Karen White — Lead UX Designer

Discovery

Requirements

• Unified design for Employees, Missionaries, Volunteers, Ecclesiastical, etc.
• Account for the smallest screen resolution 1280px x 820px.
• Represent data that has been previously represented in the previous profile designs.

Constraints

The mobile app will be developed as a Progressive Web App (PWA) so native components will have to be recreated, and speed will be slower than a native app.

Research

For the new profile experience, I focused my research around the components we had traditionally used to make sure they were being used effectively.

Task Analysis

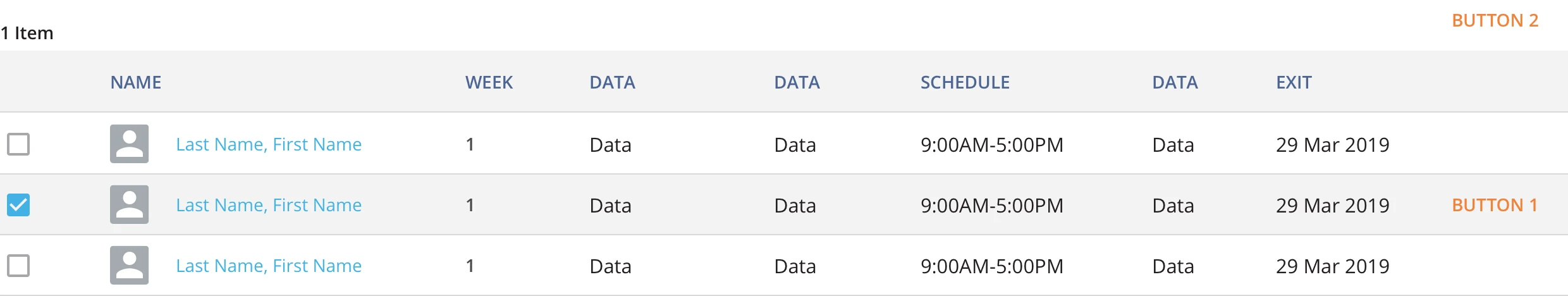

Two flows were compared: Clicking button 2 vs. clicking the checkbox and then clicking button 1

The most common component used within MTC Tools was our <mtc-table>. As I was planning on using this regularly within the profile I studied how users interacted with it.

When given a task that would force users to select button 1 or 2 the results were...

• All users clicked directly on the checkbox to activate ‘button 2’
• 40% of users tried to access ‘button 1’ by clicking on the row they were hovering.
• 40% of users clicked directly on ‘button 1’
• 20% of users didn’t notice 'button 1'

These results led me to consider 2 things: Applying a max-width on the <mtc-table> to make the button more obvious and applying a row click event to trigger the button.

Gap Analysis

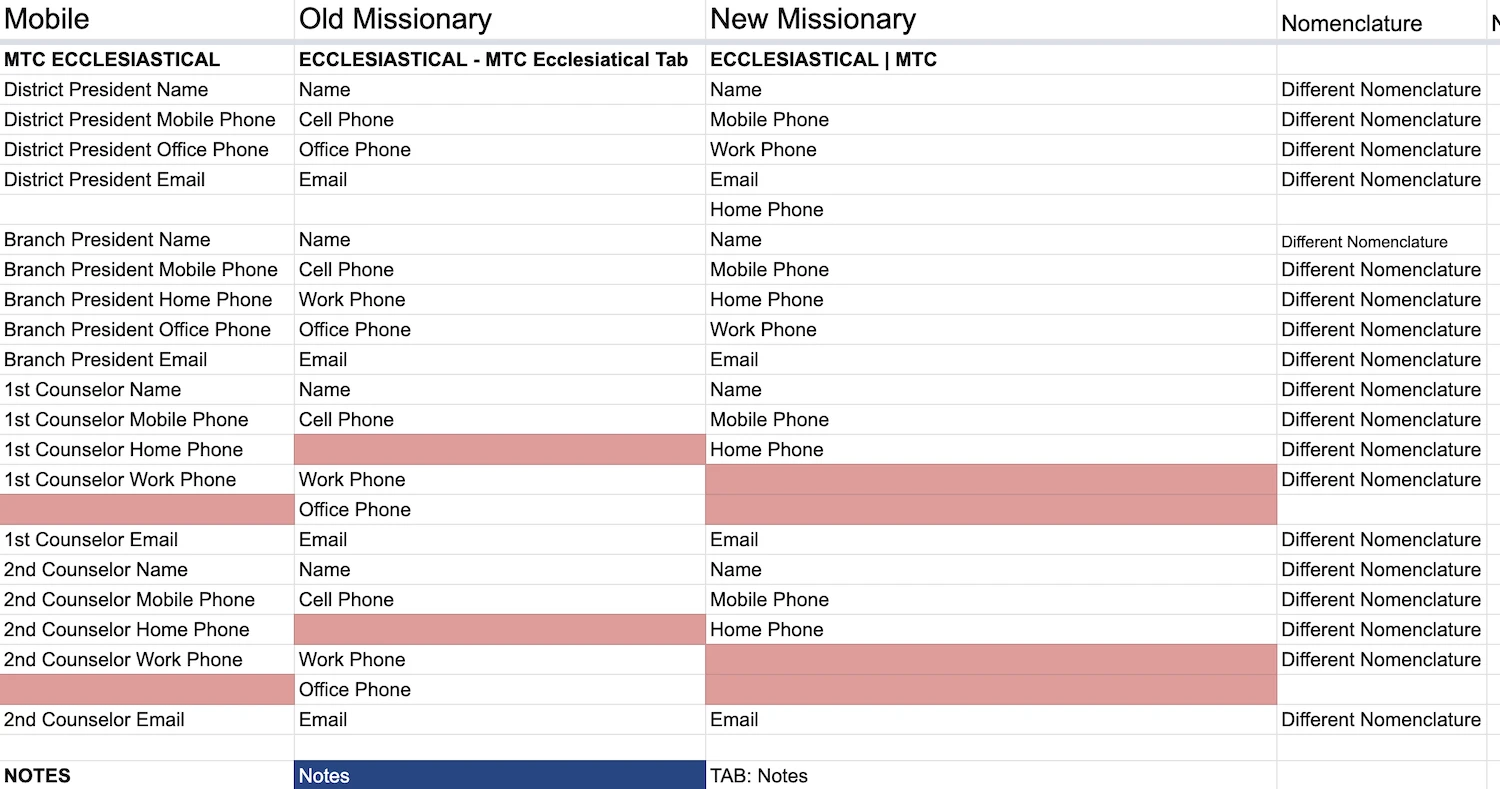

Comparing features & data across 3 previous profiles

Another thing I had to do was look into inconsistencies across our current 3 different profile experiences.

To accomplish this...

• Labels, Functionality, & Navigation links were listed out
• Items marked in red distuinguished discrepencies between the 3 versions
• Functionality was added or removed as a result of this analysis

Design

Colors

Typography

Whiteboarding > Photo credit to Kaleidico

on Unsplash

Before jumping in, the Senior UX Designer and I met to go over the project. We discussed how we were going to meet project requirements, and worked through basic layout. By whiteboarding, we were able to talk through our ideas without committing too much time to them.

Formatting Desktop

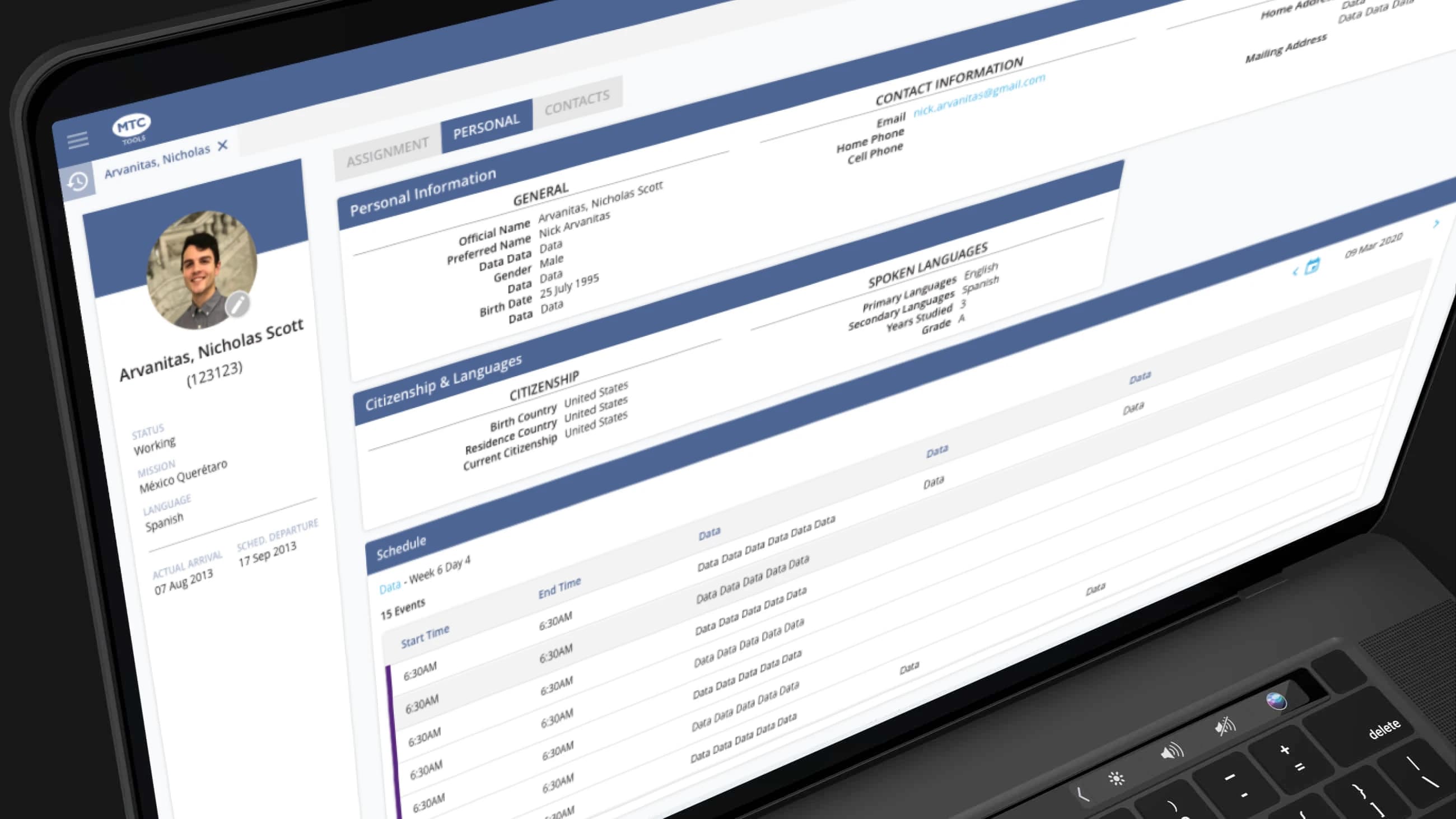

A Summary Bar helped reduce the width of main content area. If I could redo this project, I would make the title less visually heavy and increase spacing throughout.

Based on our research, we knew that some users weren't seeing buttons on our wide tables. We hoped to limit this with a <summary-bar> component that was placed along the left hand side.

A card layout was chosen that can accommodate a 3 column or 2 column layout depending on the screen width to help with responsiveness.

Wide margins are used on the left and right of the cards to help with page scrollability.

Solving for Multiple Roles

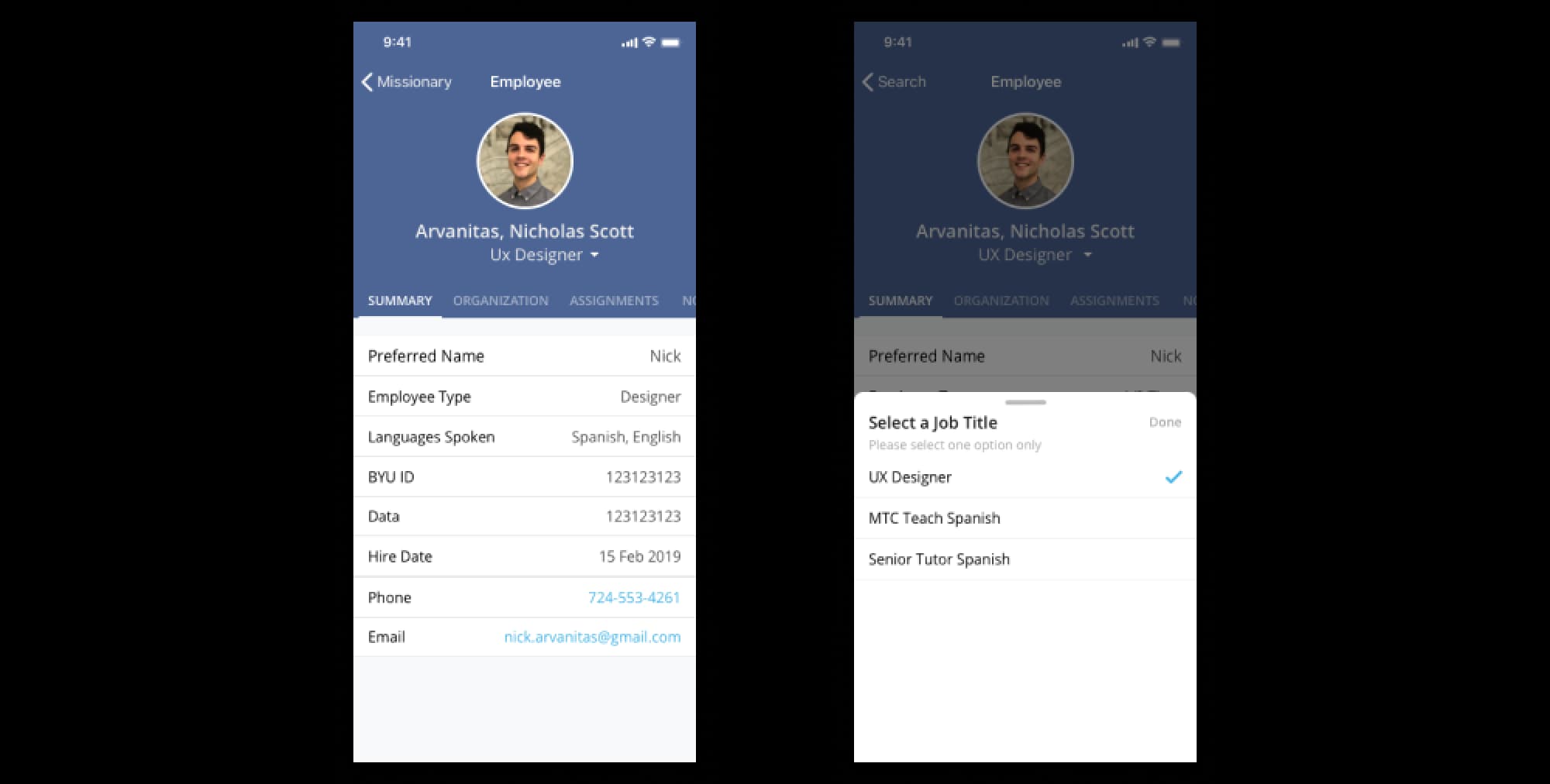

An iOS native drawer component was replicated to help view employees with multiple roles.

One feature we had to account for was solving for an employee with multiple roles. Each employee role

I tried to leverage the look of iOS native components for this feature to give the mobile version a natural feeling.

Creating a Dashboard

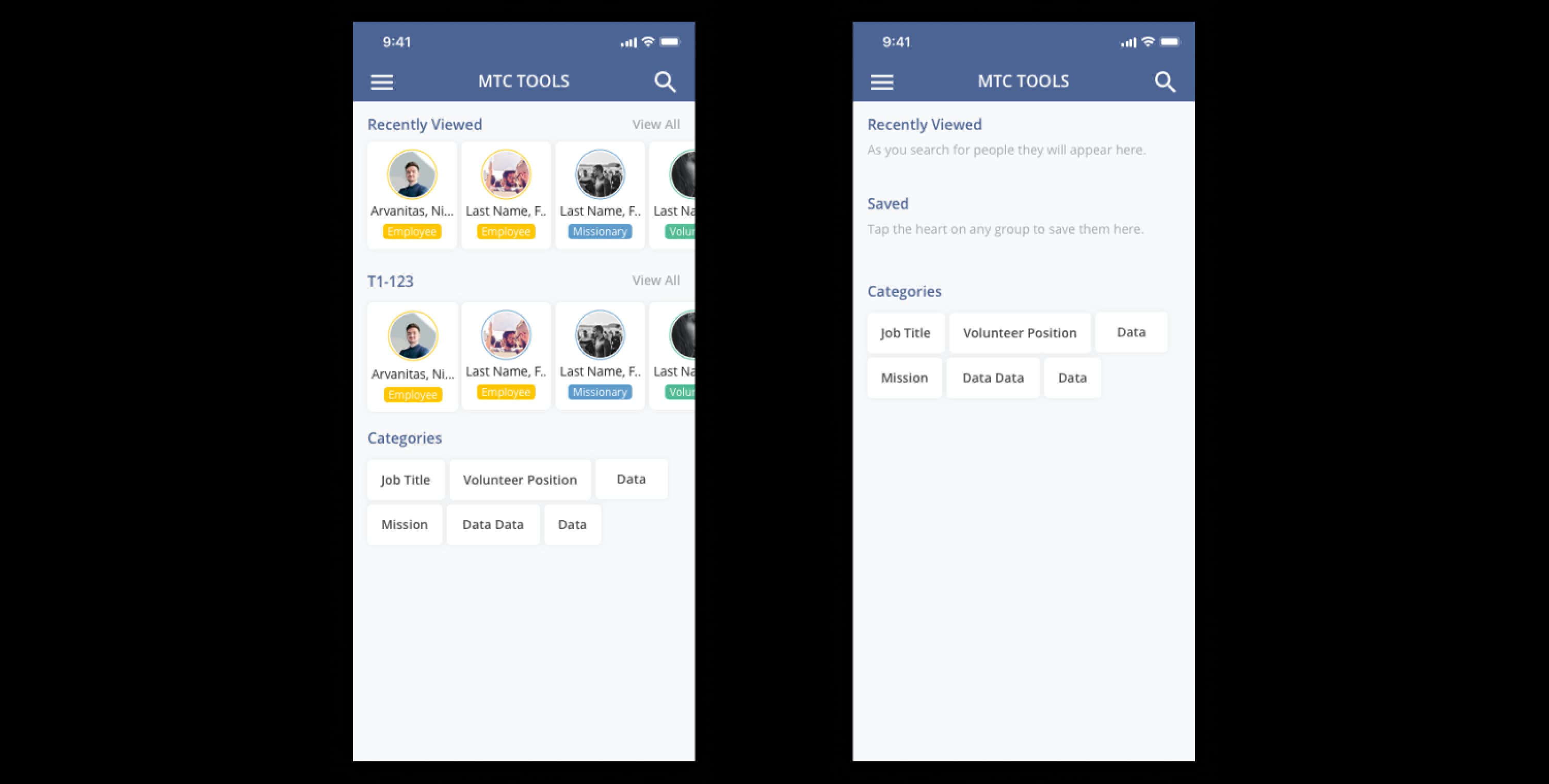

Trying to find a useful dashboard design for 1000+ profiles was difficult.

The original plan for the dashboard was to have a searchable directory. However, we soon found out that there would be 1000+ people, and the directory idea wouldn't be feasible / usefull. I proposed that instead we show smaller groupings based off individuals attributes. Although it introduced another step in the flow, it better chunked the data and was a much better option performance wise.

Finalizing the Profile

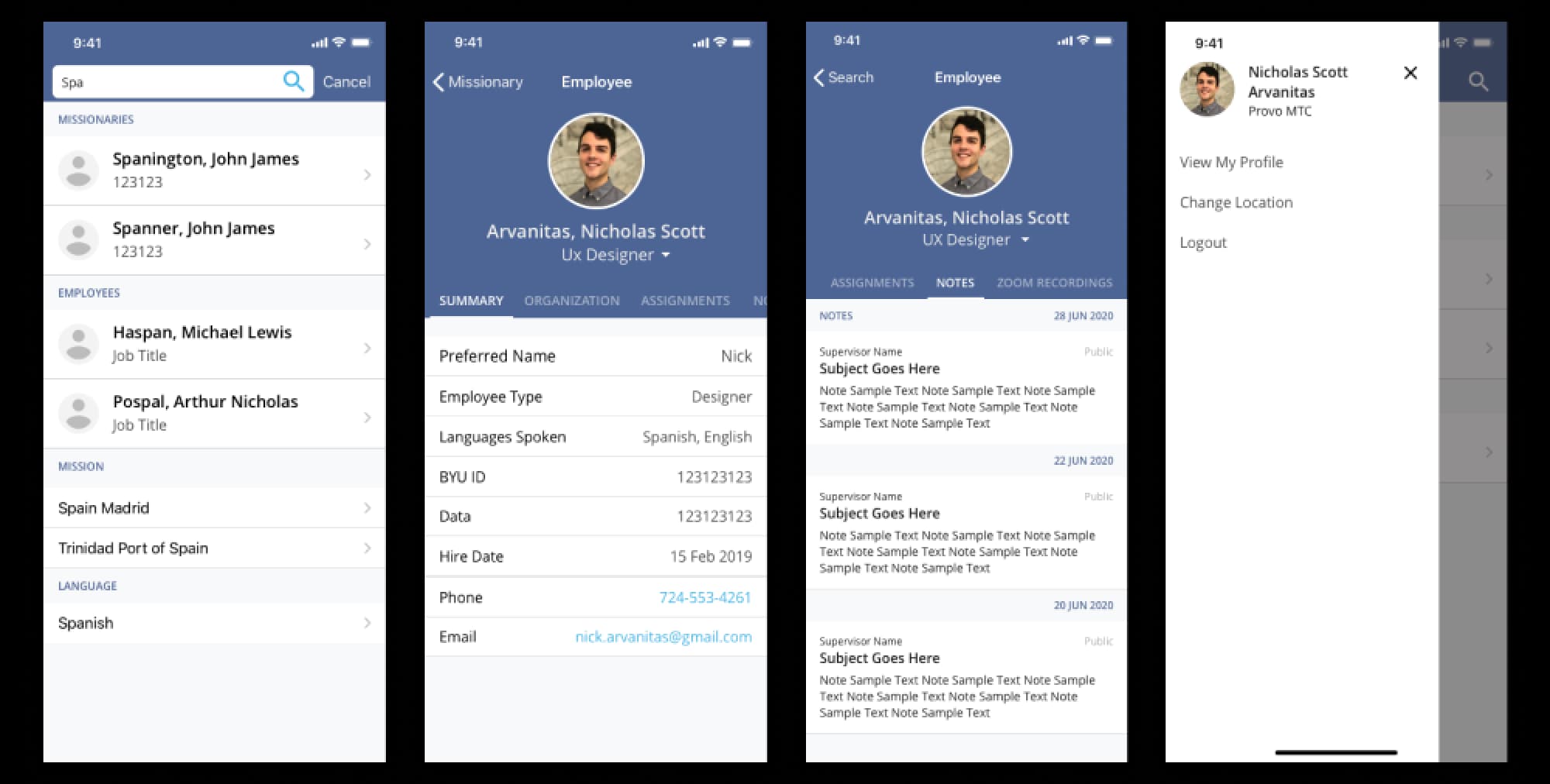

From left to right: Search, Profile, Notes, and Menu.

I tried to follow iOS guidelines as best as I could to give it the most native feel. It was important that the designed components could easily be stacked on top of eachother while maintaining proper spacing. Additional components like the menu and search had to be designed out as well to round out the feel of the app.

Presenting to the Team

Although no pictures are shown, at the end of this project I was able to meet with a team of designers, developers, and managers to present the project and our findings. From there tasks were split out and I took more of a backseat support role to make sure development met the designs.

Conclusion

Documenting Changes

After everything was launched and finalized, I spent time to update our style guide with new components. Although I did it begrudgingly, I've learned that an 'up to date' Style Guide allows designers to not be a bottle neck in flows, and allows other team members to work independantly while not compromising design.
